- Features
- Specifications

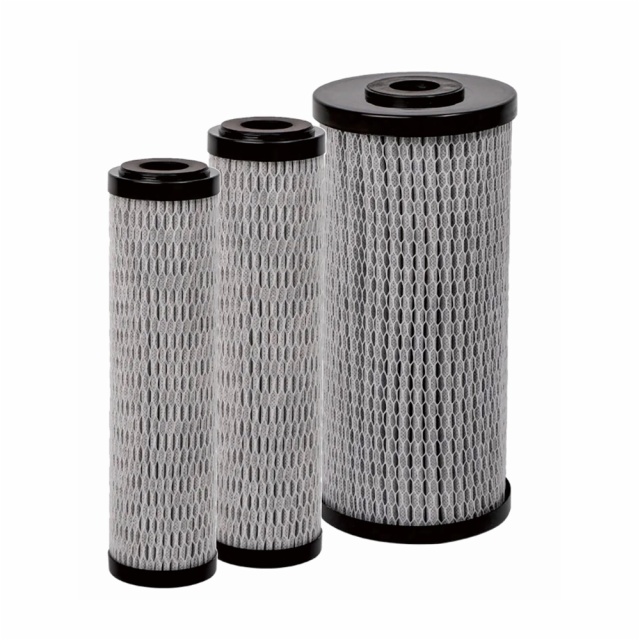

NCCP Series cartridges are constructed of activated carbon-impregnated non-cellulose media. Sediment is removed as well as taste/odor/chlorine. Unlike cellulose-containing cartridges, CNC cartridges can be used for municipal and non-chlorinated water applications. Pleated structure provides additional surface area for high dirt holding capacity, while maintaining minimal pressure drop.
The combination of synthetic media and activated carbon delivers excellent value in filter performance with extended service life.
Features
◆Non-cellulose fiber matrix media
◆Combines reduction of chlorine/taste/odor and particulates
◆Pleated design offers maximum dirt holding capacity
◆Nominal 10micron retention
Available Sizes
Available Length:
|
9.75"(248mm)
|
|
9.87"(250mm)
|
|
20"(508mm)
|
Outer Diameter:
|
2.6"(66mm)
|
|
4.53"(115mm)
|
Quality Management
Manufactured under an ISO9001:2015 certified Quality Management System.
Applications
◆Post RO Filtration
◆Potable Water Filtration
◆Well Water Treatment
◆Municipal Water
Specification Parameters
Filter Media
|
End Cap
|
Core
|
Gasket
|
Operating Temperature
|
Max. Working Differential Pressure
|
Non-cellulose carbon- impregnated media
|
Polypropylene
|
Polypropylene
|
Thermoplastic elastomer
|
40-125°F
(4.4-51.7°C)
|
35psi (2.4bar) @100°F (38°C)
|
Performance
Length
|
Chlorine/Taste/Odor Capacity*
|
Clean Pressure Drop
|
9.75"/9.87"
|
225 gallons @ 1gpm (850lit @ 3.7 lpm)
|
2 psi @ 3gpm (0.13 bar @ 10.7 lpm)
|
20"
|
450 gallons @ 2gpm (1,700lit @ 7.2 lpm)
|
2 psi @ 5gpm (0.13 bar @ 18.3 lpm)
|
9.75"/9.87"BB
|
500 gallons @ 2gpm (1,890lit @ 7.6 lpm)
|
2 psi @ 8gpm (0.13 bar @ 30 lpm)
|
20"BB
|
1,000 gallons @ 4gpm (3,780lit @ 14.6 lpm)
|
1 psi @ 10gpm (0.07 bar @ 36 lpm)
|
*Chlorine taste & odor reduction based on greater than 50% reduction using 2ppm free chlorine feed concentration at 68°F (20°C) at continuous flow.
*Warning: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

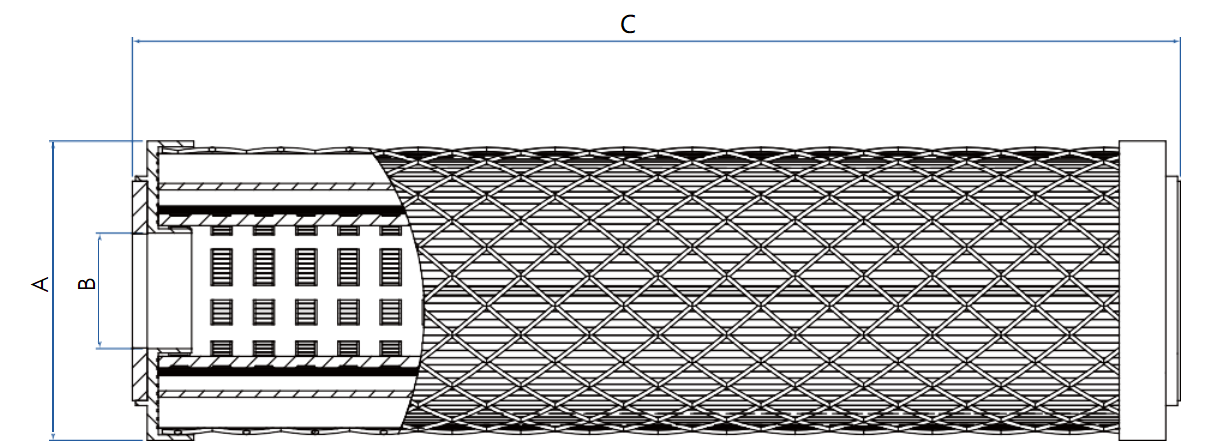

Dimensions (mm)
Length
|
A
|
B
|
C
|
9.75"
|
66
|
28
|
248
|
9.87"
|
66
|
28
|
250
|
20"
|
66
|
28
|
508
|
9.75"BB
|
115
|
28
|
248
|
9.87"BB
|
115
|
28
|
250
|
20"BB
|
115
|
28
|
508
|

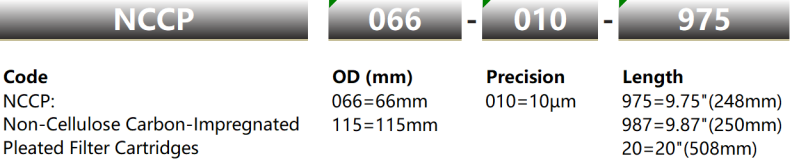

Order Information
