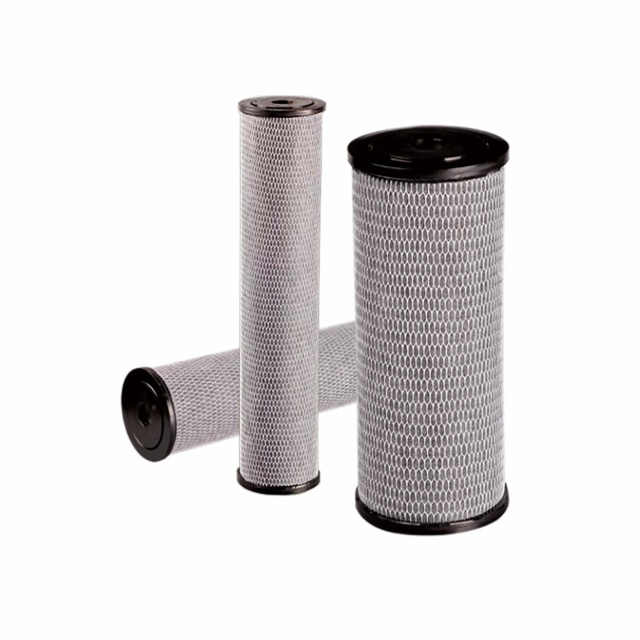

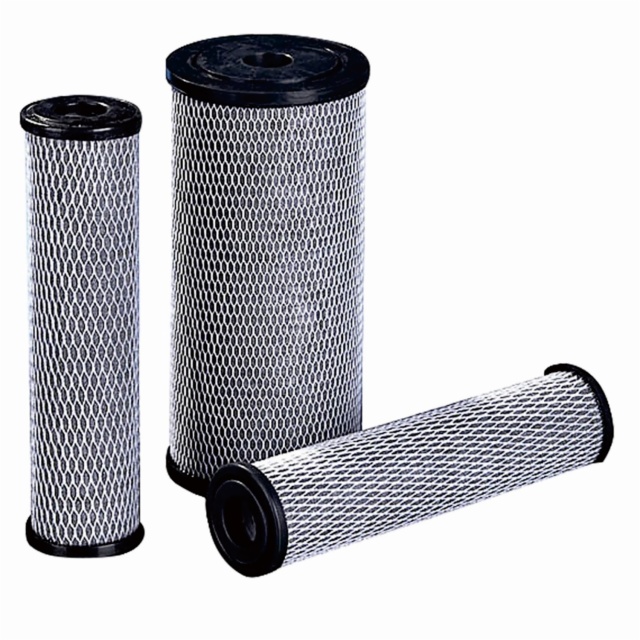

CCM Series Carbon cellulose filter cartridge feature powdered activated carbon impregnated into cellulose fiber in a multi-layer structure. These cartridges are an economical solution to provide capable filtration performance and long service life.
Taste/odor/chlorine, organic impurities, and particulate are effectively reduced. An inner-most media layer prevents downstream release of carbon fines. The powdered activated carbon is highly refined and well-bonded within the fiber matrix for high efficiency filtration.
Beyond their use with potable water, CCM-series cartridges are a traditional cartridge for use in electroplating solution and chemical process filtration.
Features
◆Nominal 10micron removal rating
◆Excellent dirt-holding capacity
◆Highly absorptive activated carbon media
◆Improved service life versus carbon block filters
Available Sizes
Available Length:
|
9.75"(248mm)
|
|
9.87"(250mm)
|
|
10"(254mm)
|
|
20"(508mm)
|
Outer Diameter:
|
2.6"(65mm)
|
|
4.53"(115mm)
|
Removal Rating:
|
10μm
|
Quality Management
Manufactured under an ISO9001:2015 certified Quality Management System.
Applications
◆Potable & Process Water
◆Plating Solutions
◆Pre- or Post- Filtration for RO Systems
◆Water Purification Systems
◆Food & Beverage
◆Chemical Processing
Specification Parameters
Filter Media
|
End Cap
|
Core
|
Netting
|
Gasket
|
Operating Temperature
|
Max. Working Differential Pressure
|
Carbon Impregnated Cellulose
|
Polypropylene
|
Polypropylene
|
Polypropylene
|
Thermoplastic elastomer
|
40-100°F
(4-38°C)
|
35psi (2.4bar) @100°F (38°C)
|

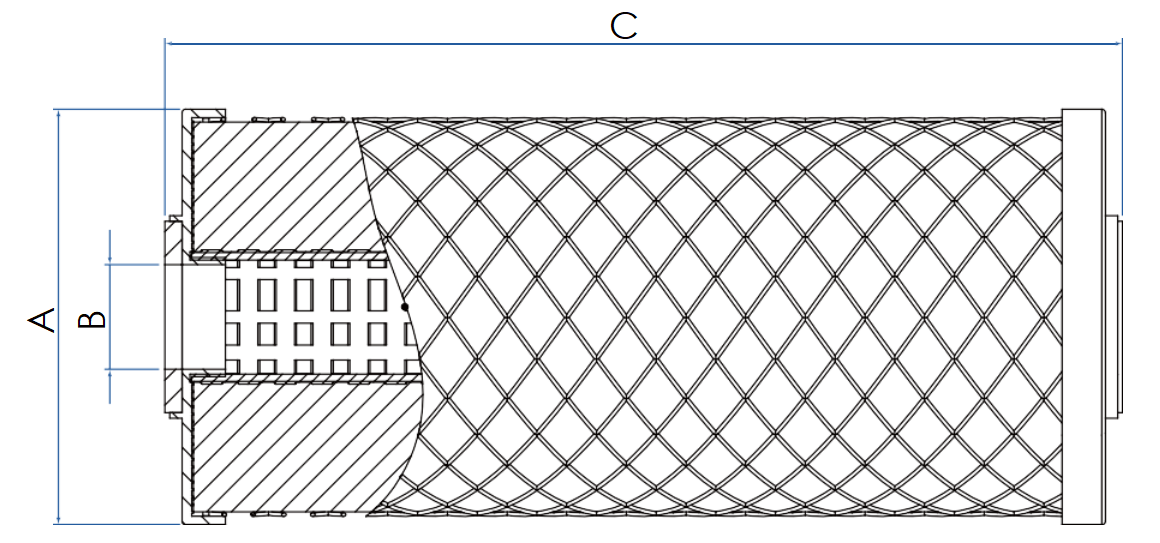

Dimensions (mm)
Length
|
A
|
B
|
C
|
9.75"
|
65
|
28
|
248
|
9.87"
|
65
|
28
|
250
|
10"
|
65
|
28
|
254
|
20"
|
65
|
28
|
508
|
9.75"BB
|
115
|
28
|
248
|
9.87"BB
|
115
|
28
|
250
|
10"BB
|
115
|
28
|
254
|
20"BB
|
115
|
28
|
508
|

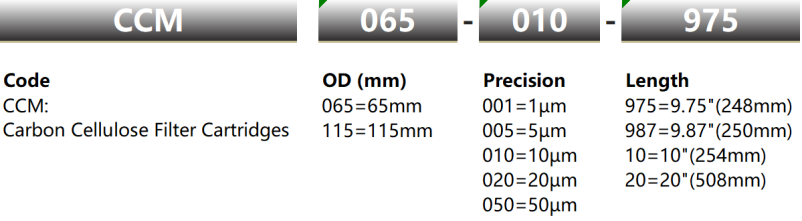

Order Information
