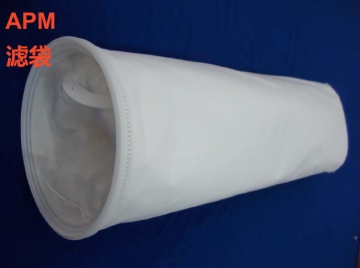

Polypropylene Absolute Precision Microfiber Filter Bag APM is an absolute precision polypropylene microfiber bag filter, consisting of a polypropylene film and extractable free fibers in a multi-layer composite structure. The staged folded film filtration and gradient pore size deep filtration make the APM filter bag an ideal choice for high-efficiency filtration. Microfibers also meet the paint and coatings industry's requirement for maximizing oil removal. The 300 and 900 series products closely match ETON's 100 and 300 series products and can replace them.

Features:

• Seaming method: Ultrasonic welding.
• Seal ring: Polypropylene and polyester SDS, STS, galvanized steel ring, or stainless steel ring.
• Seal ring connection method: Ultrasonic welding or thread sewing.
• Precision range: 1, 2, 5, 10, 25, 50 microns.
• Efficiency: Absolute precision, single pass filtration efficiency of 98%.
• Recommended maximum flow rate: Bag #1, 6t/h; Bag #2, 12t/h.
• Material grade: Fully compliant with FDA requirements, free from silicone and other types of contaminants.
• High flow rate, low pressure drop.
• Large dirt-holding capacity, prolonging service life.
• Optimal replacement pressure differential below 0.07MPa, maximum not exceeding 0.15MPa.
• Wide chemical compatibility.
