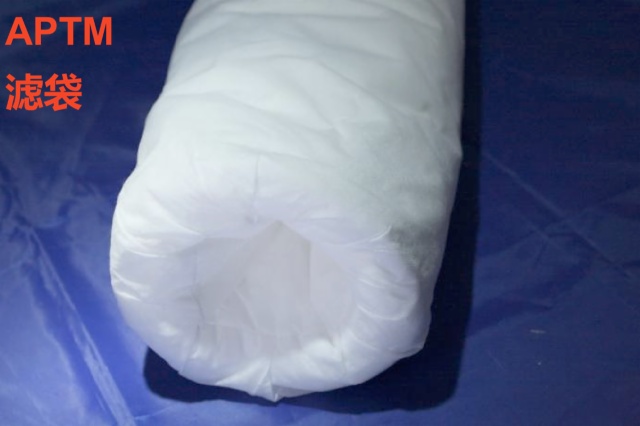

Polypropylene Absolute Precision Filter Bag The APTM series products are absolute precision polypropylene filter bags (APTM). They are composed of polypropylene film, extracted polypropylene microfibers, and other necessary materials. The composite material structure enables high removal efficiency, high dirt-holding capacity, and high oil absorption capacity. APTM filter bags are suitable for oil removal in the paint and coatings industry. APTM is also applicable to special fields such as electronics and microelectronics. APTM functions are very close to 3M's 100 and 300 series and can serve as replacements for these products.

Features:

• Seaming method: Ultrasonic welding or thread sewing.
• Seal ring: Polypropylene and polyester SDS, PLK, STS, galvanized steel ring, or stainless steel ring.
• Seal ring connection method: Ultrasonic welding or thread sewing.
• Precision range: 1.5, 2.5, 7.5, 10, 25 microns.
• Efficiency: Single pass filtration, 95% for the 300 series, 99% for the 900 series.
• Recommended maximum flow rate: Bag #1, 6t/h; Bag #2, 12t/h.
• Material grade: Fully compliant with FDA requirements, free from silicone and other types of contaminants.
• High flow rate, low pressure drop.
• Large dirt-holding capacity, prolonging service life.
• Optimal replacement pressure at 0.15MPa, maximum not exceeding 0.23MPa.
• Wide chemical compatibility.
