- Features
Material
|
SUS304, SUS316L
|
Max working pressure
|
150Psi
|
Surface
|
Polished or sandblast external surface
|

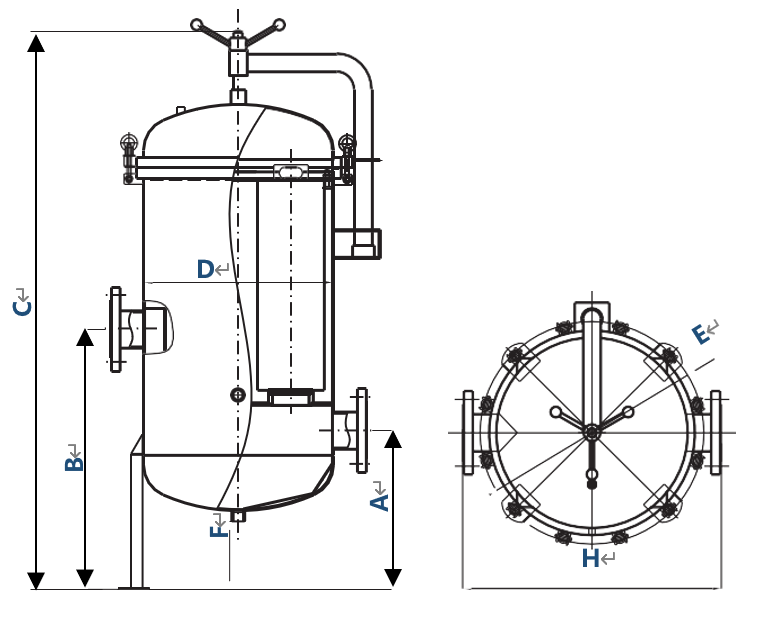

Stadard specificationsn
Model
|
A
(mm)
|
B
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
H
(mm)
|
In/Out
|
Drain
|
FR10-W1L4
|
300
|
800
|
1550
|
Φ250
|
370
|
150
|
410
|
2-3＂
|
1/2＂
|
FR10-W2L4
|
370
|
900
|
1830
|
Φ350
|
460
|
200
|
550
|
3-4＂
|
3/4＂
|
FR10-W2L4
|
390
|
1000
|
1900
|
Φ400
|
530
|
190
|
600
|
4-5＂
|
3/4＂
|
FR10-W3L4
|
460
|
1100
|
1990
|
Φ450
|
590
|
250
|
650
|
4-5＂
|
3/4＂
|
FR10-W4L4
|
480
|
1100
|
2050
|
Φ500
|
645
|
230
|
740
|
5-6＂
|
1＂
|
FR10-W6L4
|
500
|
1100
|
2080
|
Φ550
|
705
|
240
|
790
|
5-6＂
|
1＂
|
FR10-W7L4
|
560
|
1200
|
2160
|
Φ600
|
745
|
290
|
840
|
5-6＂
|
1＂
|
FR10-W8L4
|
580
|
1200
|
2190
|
Φ650
|
810
|
300
|
890
|
5-6＂
|
1＂
|
FR10-W8L4
|
590
|
1200
|
2230
|
Φ700
|
862
|
280
|
940
|
6-8＂
|
1＂
|
FR10-W10L4
|
610
|
1250
|
2260
|
Φ750
|
930
|
290
|
990
|
6-8＂
|
1 1/2＂
|
FR10-W13L4
|
620
|
1250
|
2300
|
Φ800
|
980
|
270
|
1040
|
6-8＂
|
1 1/2＂
|
FR10-W18L4
|
670
|
1350
|
2380
|
Φ900
|
1115
|
290
|
1140
|
6-8＂
|
1 1/2＂
|
