- Features
Material
|
SUS304, SUS316L
|
Max working pressure
|
1000Psi
|
Surface
|
Polished or brushing external surface
|

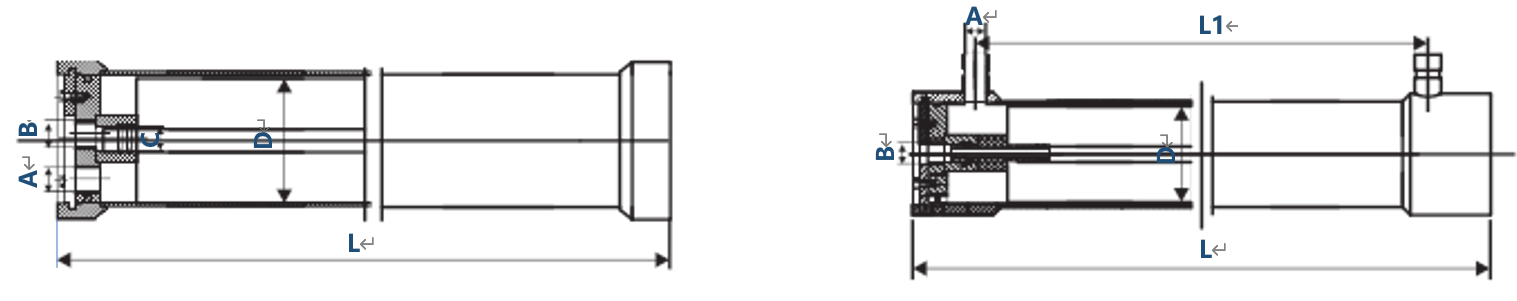

Standard specifications
Model
|
L
(mm)
|
C
(mm)
|
D
(mm)
|
A
(in)
|
B
(out)
|
FR5-4021-E
|
612
|
Φ19.5
|
Φ102
|
1/2＂ 3/4＂
|
1/2＂
|
FR5-4040-E
|
1094
|
Φ19.5
|
Φ102
|
1/2＂ 3/4＂
|
1/2＂
|
FR5-4080-E
|
2110
|
Φ19.5
|
Φ102
|
3/4＂
|
1/2＂
|
FR5-40120-E
|
3126
|
Φ19.5
|
Φ102
|
3/4＂
|
1/2＂
|
FR5-40160-E
|
4142
|
Φ19.5
|
Φ102
|
3/4＂
|
1/2＂
|
Model
|
L
(mm)
|
L1
(mm)
|
D
(mm)
|
A
(in)
|
B
(out)
|
FR5-2540-S
|
1162
|
1034
|
Φ62
|
1/2＂ -3/4＂
|
1/2＂
|
FR5-4021-S
|
730
|
602
|
Φ102
|
3/4＂ -1＂
|
1/2＂
|
FR5-4040-S
|
1212
|
1084
|
Φ102
|
3/4＂ -1＂
|
1/2＂
|
FR5-4080-S
|
2228
|
2100
|
Φ102
|
3/4＂ -1＂
|
1/2＂
|
FR5-40120-S
|
3244
|
3116
|
Φ102
|
3/4＂ -1＂
|
1/2＂
|
FR5-40160-S
|
4260
|
4132
|
Φ102
|
3/4＂ -1＂
|
1/2＂
|
