- Features
Material
|
SUS304, SUS316L, Q235
|
Max working pressure
|
100Psi
|
Surface
|
Polished or sandblast external surface
|

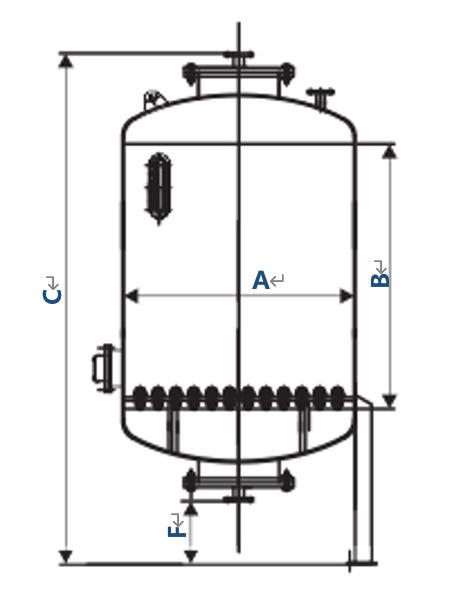

Stadard specificationsn
Model
|
A
(mm)
|
B
(mm)
|
C
(mm)
|
F
(mm)
|
In/Out
|
Vent
|
300×1200
|
Φ300
|
1200
|
1800
|
300
|
1＂
|
3/4＂
|
400×1500
|
Φ400
|
1500
|
2150
|
300
|
1＂
|
3/4＂
|
500×1500
|
Φ500
|
1500
|
2230
|
300
|
1-1/4＂
|
1＂
|
600×1500
|
Φ600
|
1500
|
2290
|
300
|
1-1/4＂
|
1＂
|
700×1500
|
Φ700
|
1500
|
2340
|
300
|
1-1/2＂
|
1＂
|
800×1500
|
Φ800
|
1500
|
2390
|
300
|
1-1/2＂
|
1＂
|
900×1500
|
Φ900
|
1500
|
2600
|
300
|
1-1/2＂
|
1＂
|
1000×1500
|
Φ1000
|
1500
|
2750
|
400
|
1-1/2＂
|
1＂
|
1100×1500
|
Φ1100
|
1500
|
2800
|
400
|
2＂
|
1-1/4＂
|
1200×1500
|
Φ1200
|
1500
|
2850
|
400
|
2＂
|
1-1/4＂
|
1400×1500
|
Φ1400
|
1500
|
2950
|
400
|
2＂
|
1-1/4＂
|
1500×1800
|
Φ1500
|
1800
|
3360
|
400
|
2＂
|
1-1/4＂
|
1600×1800
|
Φ1600
|
1800
|
3500
|
400
|
2-1/2＂
|
1-1/2＂
|
1800×1800
|
Φ1800
|
1800
|
3610
|
400
|
2-1/2＂
|
1-1/2＂
|
2000×1800
|
Φ2000
|
1800
|
3710
|
400
|
3＂
|
1-1/2＂
|
2200×1800
|
Φ2200
|
1800
|
3810
|
400
|
3＂
|
1-1/2＂
|
2500×2000
|
Φ2500
|
2000
|
3860
|
400
|
3＂
|
1-1/2＂
|
