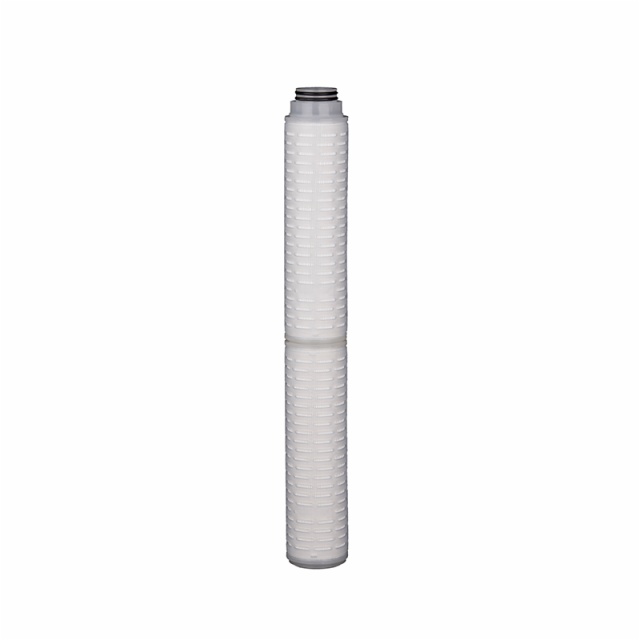

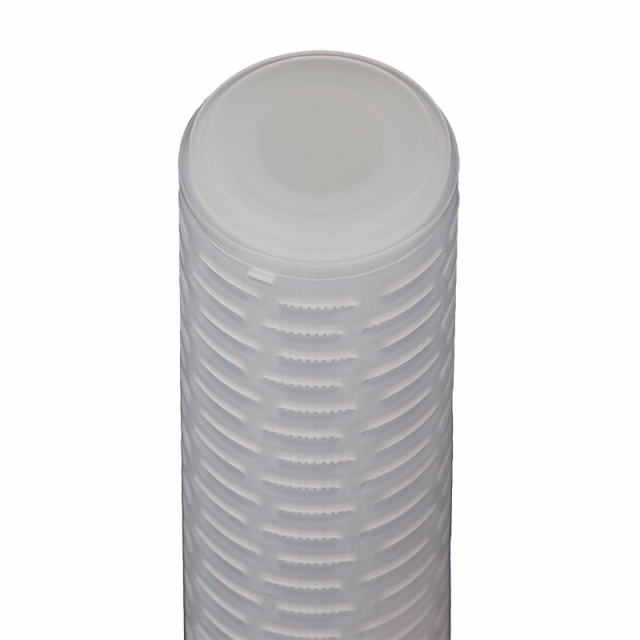

Micropore Pleated Filter Cartridges(DPPL)

  • Features
  • Specifications
  • Order Information
CPPL Advantage Cartridges, made of pleated polypropylene microfiber, provide high efficiency and high purity filtration. The high submicron efficiency of the Advantage line makes it an ideal membrane pre-filter or cost-effective alternative to membrane cartridges in a wide range of applications. Advantage Pleated Cartridges are available in 0.2μm, 0.5μm, 1.2μm, 2.5μm, 5μm, 10μm, 20μm, 50μm ,75μm and 100μm absolute rated pore sizes (99.8% removal; ß=500).
  • * All-polypropylene media and construction meet a broad range of performance requirements.
  • * One-piece fused construction is 100% bonded for maximum cartridge integrity.
  • * High surface area design provides superior flow rates and extended service life.
  • * All materials of construction are FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21.
  • * Fixed pore construction provides ultimate particle retention efficiency.

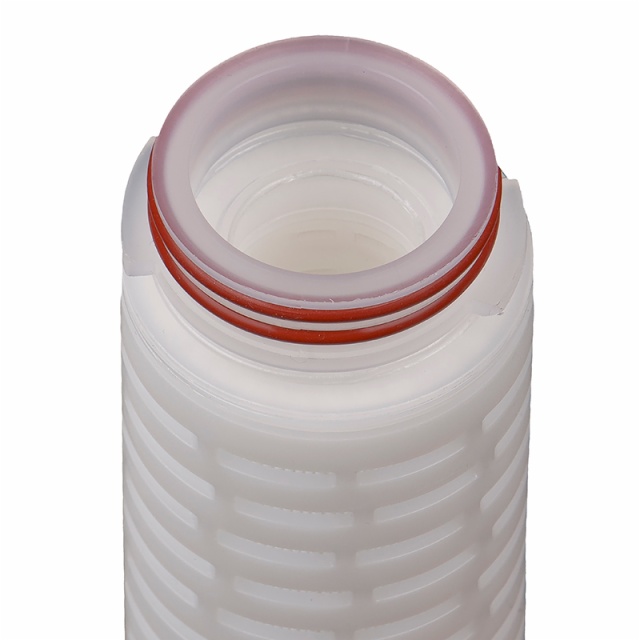

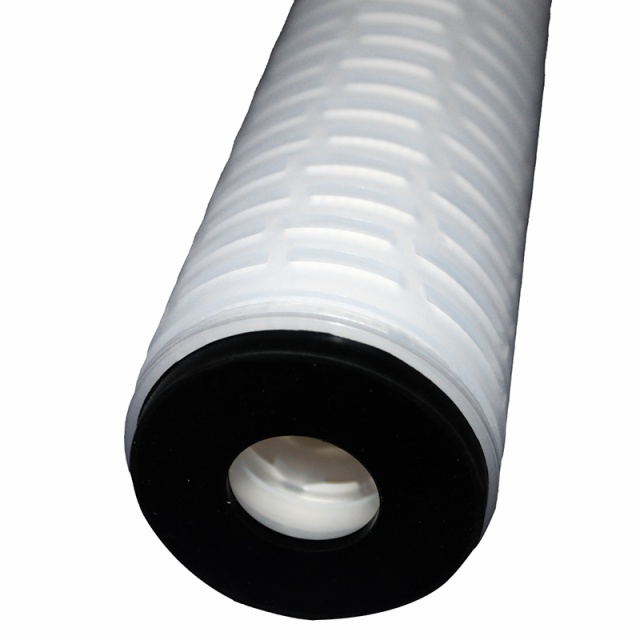

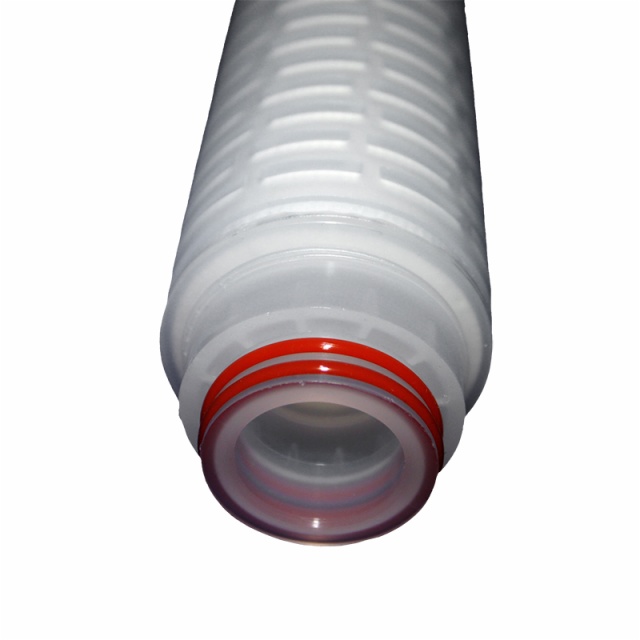

  • * Major end seal options are available to fit most vessel requirements.
  • * Advantage cartridges are non-fiber releasing.
